AUTOTERM Air 4D

4kW diesel air heater
(previously Planar 4D)

SKU: N/A

578,00 € – 668,00 €

incl. VAT

Voltage

Control panel

Heating power: 4 kW
Fuel: Diesel
Voltage: 12V / 24V
Application: Vans, Campers, Trucks, Off-Highway, Boats/Yachts
Latest High Altitude compatible hardware (up to 4200m)
CE Certified (TÜV/MOT)

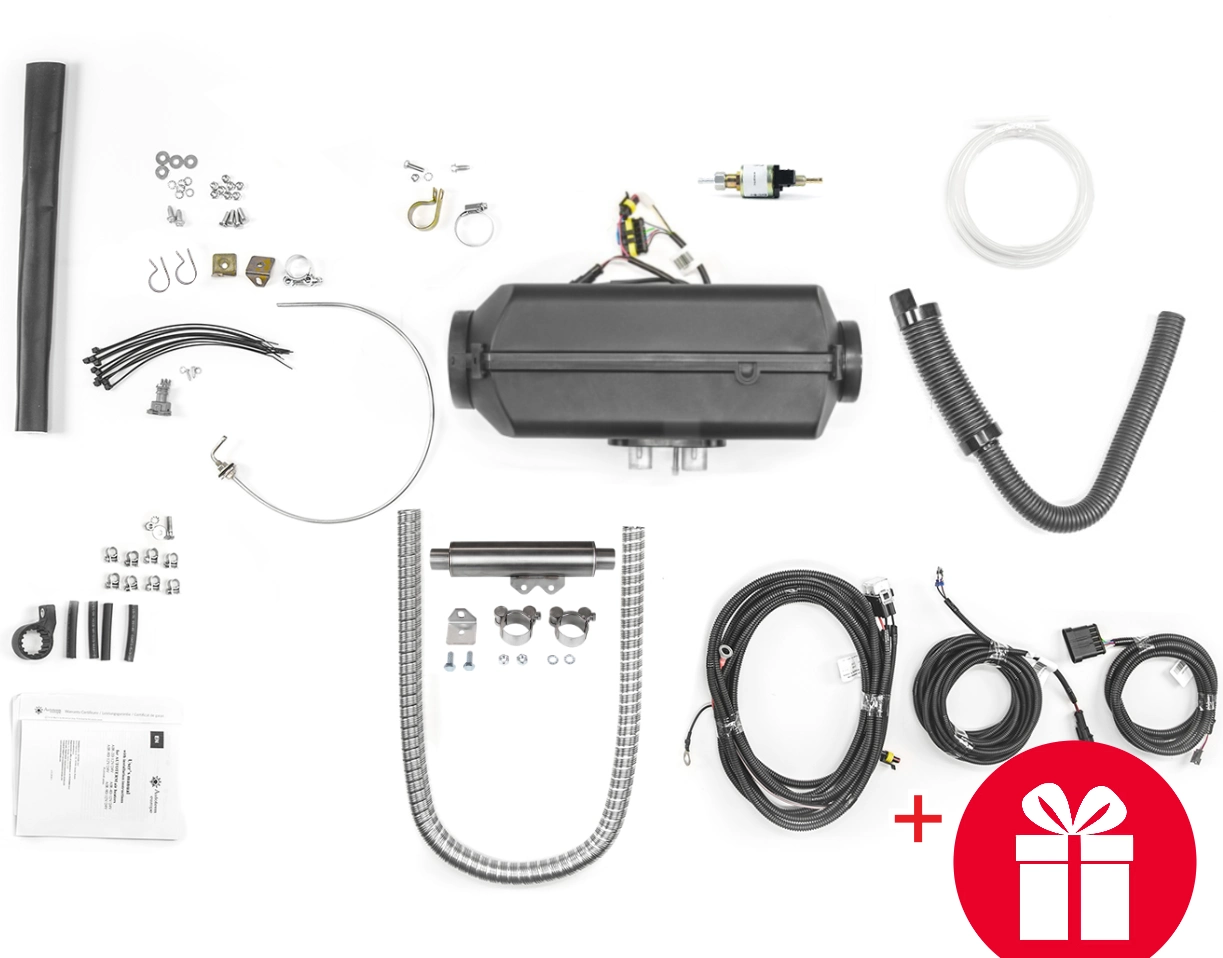

Complete kit + free gift – Autoterm mounting plate (AT0025)

Always latest revision directly from manufacturer.

Control panel info: Simple (PU-5), OLED (PU-27), Comfort Control
You can also select [NO control panel] if, for example, you are buying the heater together with a combiBOIL and a Comfort Boiler Control.

LTE Modem for remote control via smartphone: QStart Modem

To connect Ø 90 mm air pipe (assy.DE015) to air inlet/outlet, additional adapter is needed:
– inlet air pipe adapter: P5313
– outlet air pipe adapter: P2423

AUTOTERM Air 4D is one of the most popular diesel-powered air heaters from Air series.

The heater unit draws fresh air from the outside or from a well-ventilated room, then heats it up quickly, thus providing comfort and warmth in low temperature environments.

The heater’s maximum power output is 4 kW, and it is capable to produce up to 168 m3 of hot air flow hourly, and maintaining your desired temperature.

AUTOTERM Air 4D is highly versatile when it comes to installation and can be easily retrofitted in almost any land vehicle, marine transport vehicle and is supplied with a full installation kit, whether you choose the 12V or the 24V DC version.

AUTOTERM Air 4D with its economic fuel consumption of 0.51 l/h on maximum power is a highly rated product for its low and reasonable price.

All AUTOTERM Air series heaters are equipped with brushless induction motors that ensure low noise levels as well as a long lifetime for the device and the capability to operate in extreme environments and temperatures as low as -45°C/-49°F.

AUTOTERM Air heaters can be controlled with various control panels or remotely via your iOS or Android smartphone (remote control modem sold separately).

This is a great product for those who need to additionally heat large truck cabins, commercial vehicle cabins and cargo compartments, campers, motorhomes or boats/yachts of up to 48 ft/15 m.
