AUTOTERM Air 2D

Heating power: 2 kW
Fuel: Diesel
Voltage: 12V / 24V
Application: Vans, Campers, Trucks, Off-Highway, Boats/Yachts
Latest High Altitude compatible hardware (up to 4200m)
CE Certified (TÜV/MOT)

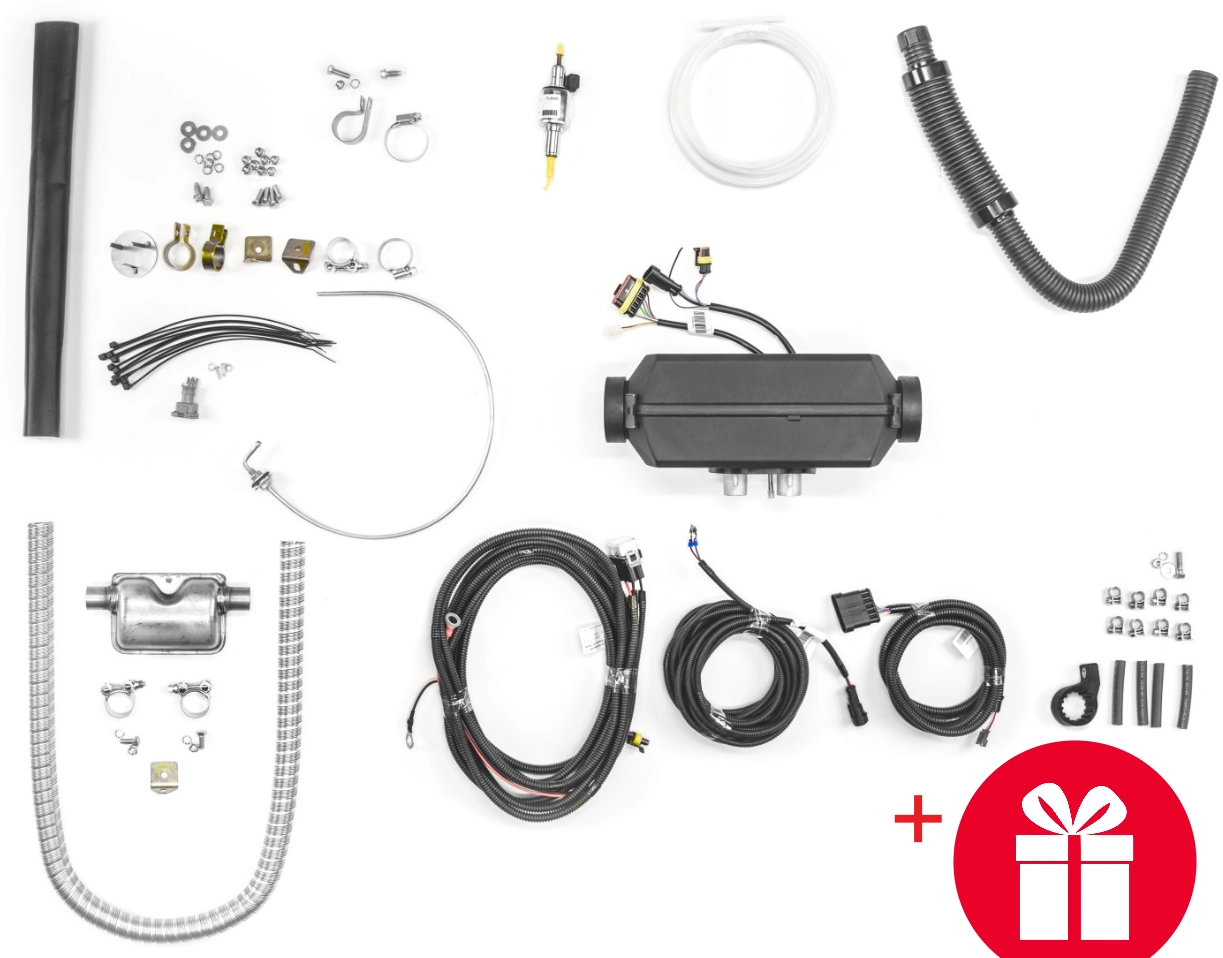

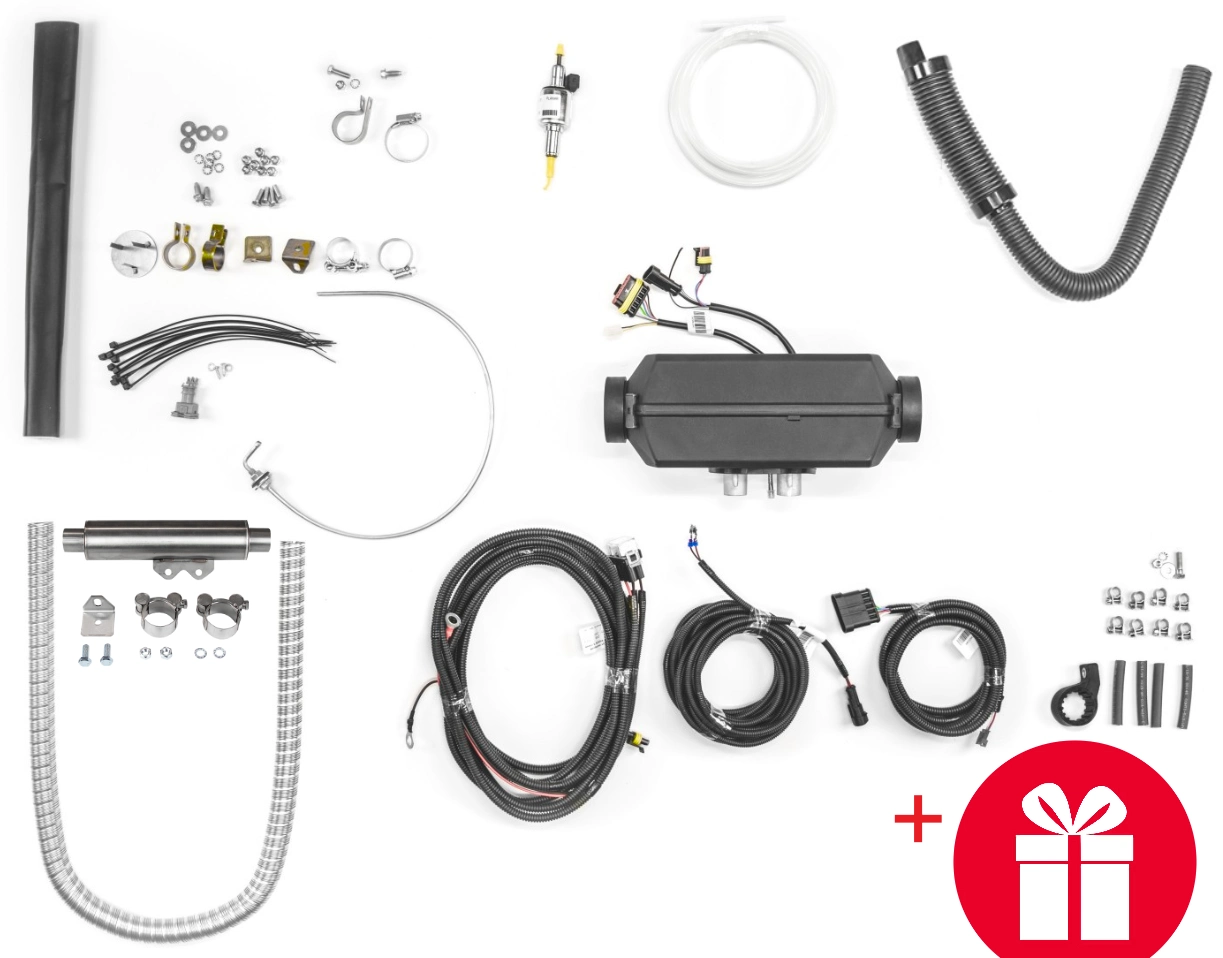

Complete kit + free gift – Autoterm mounting plate (AT0025)

Always latest revision directly from manufacturer.

Control panel info: Simple (PU-5), OLED (PU-27), Comfort Control
You can also select [NO control panel] if, for example, you are buying the heater together with a combiBOIL and a Comfort Boiler Control.

LTE Modem for remote control via smartphone: QStart Modem





AUTOTERM Air 2D is the most compact diesel-powered air heater from Air series.

The heater unit uses fresh air from outside or from a well-ventilated room, then heats it up quickly, thus providing comfort and warmth in low temperature environments.

The heater’s maximum power output is 2 kW and it is capable to produce up to 86 m3 of hot air flow hourly, and maintain your desired temperature.

With its compact design, AUTOTERM Air 2D can be easily installed or retrofitted in almost any land vehicle, marine transport vehicle and is supplied with a full installation kit, whether you choose the 12V or the 24V DC version.

Already reasonably priced, the AUTOTERM Air 2D maintains its low cost further due to its excellent fuel economy (even at maximum power), consuming only 0.24 litres of diesel fuel per hour.

All AUTOTERM Air series heaters are equipped with brushless induction motors that ensure low noise levels as well as a long lifetime for the device and the capability to operate in extreme environments and temperatures as low as -45°C/-49°F.

AUTOTERM Air heaters can be controlled with various control panels or remotely via your iOS or Android smartphone (remote control modem sold separately).

This is a great product for those who need to additionally heat small truck cabins, commercial vehicle cabins and cargo compartments, small campers, off-highway vehicles or boats of up to 33 ft/10 m.



AUTOTERM Air 2D
Technical characteristics	High Low
Voltage	12V or 24V
Heating medium	Air
Heating power	2.0 kW 0.8 kW
Heated air volume	86 m3/h 34 m3/h
Power consumption	29 W 10 W
Max. work altitude (MASL)	4200 m
Fuel	Diesel – EN590
Fuel consumption	0.24 l/h 0.10 l/h
Control mode	Manual, standard remote control, modem
Compatible control panels	Simple Control, OLED Control panel, Comfort Control
Weight of the heater	2.9 kg
Weight of the set	6.4 kg
Heater dimensions	310x119x145 mm
Package dimensions	40x36x17 cm
