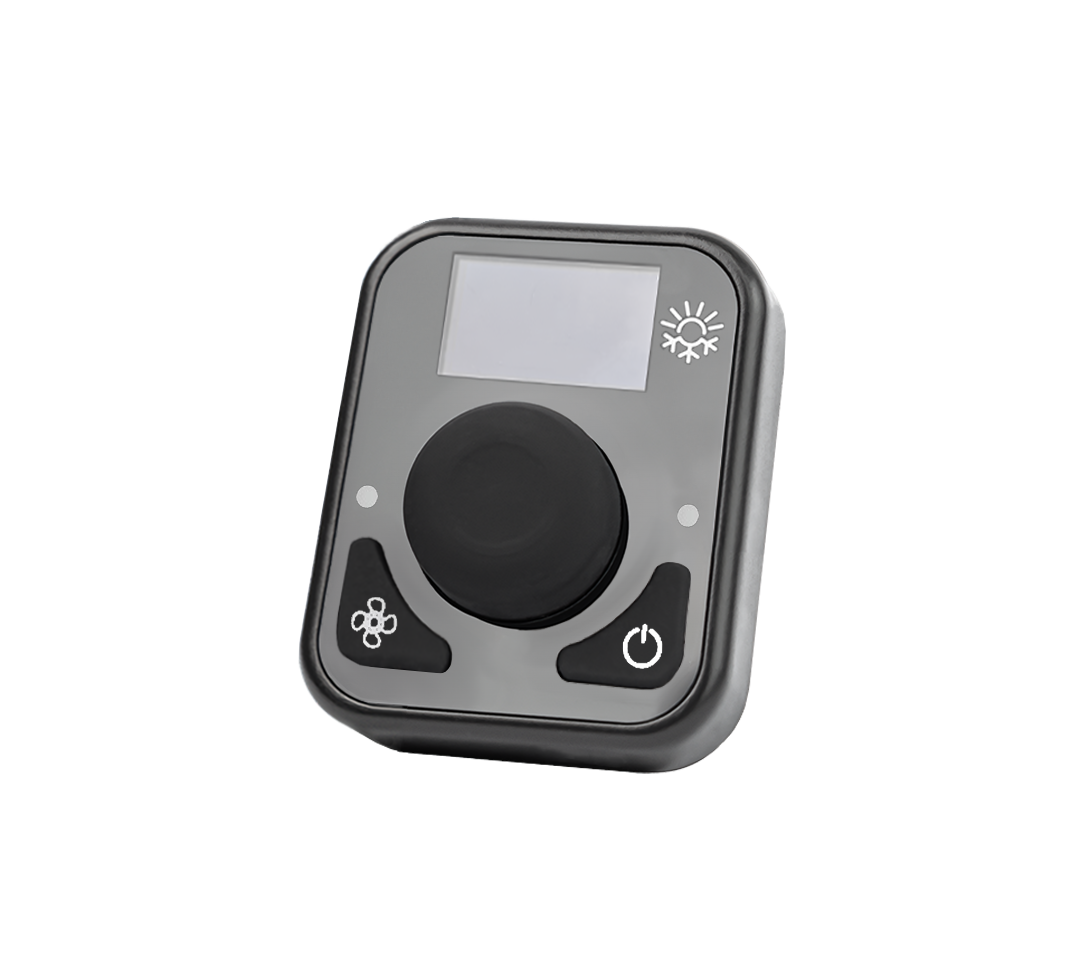

Control panel – Mini Control

This control panel offers a simple and convenient way to manage AUTOTERM Air & Flow heaters. Featuring a single rotary knob and a compact display, it enables effortless and intuitive adjustment of settings.

Control panel comparison chart

Control Panel	Mini Control	Touch Control	Comfort Control
Power mode	✓	✓	✓
Temperature mode	✓ (requires 1458 or AT4-0017-AA0)	✓	✓
Ventilation mode	✓	✓	✓
Heating + Ventilation mode	✓	✓	✓
LED status	✓		✓
Built in temperature sensor		✓	✓
Timers		✓	✓
Display		✓	✓
Touchscreen function		✓
Multi-language		✓	✓
Informative UI		✓	✓
Thermostat mode for AIR Series			✓
Thermostat mode for FLOW series		✓	✓
Quick access button		✓	✓
Heater maintenance reminder			✓
Vehicle battery safety function			✓
Dimensions (mm)	48x38x13	77x67x14	82x37x19

THERMOSTAT MODE – The heater will operate till the specific temperature is reached, then shut off the combustion process and ventilation. The heater will turn back on once the temperature drops by a specific amount.

TEMPERATURE MODE – The heater will maintain the set temperature by reducing the heating power and shut off the combustion process when the top delta value is reached, without switching off the heater fan.

VEHICLE BATTERY SAFETY FUNCTION – The Heater turns off if the battery voltage drops to 10V.

Please note:

AUTOTERM air heaters with production date 16.11.2016 or older does not support Ventilation mode. You can check your air heaters AUTOTERM production date on the warranty card.
AUTOTERM air heaters need external temperature sensor (assy.1458), so that the “Power mode” and “Ventilation during heating” function would work.
