AUTOTERM duoBOIL 9L

Hot Water Boiler with two heating options – coolant and electricity. Monitorable and controllable via Autoterm Boiler Control panel.

Capacity: 9 liters
Available power configurations: 12V 300W | 230V 500W

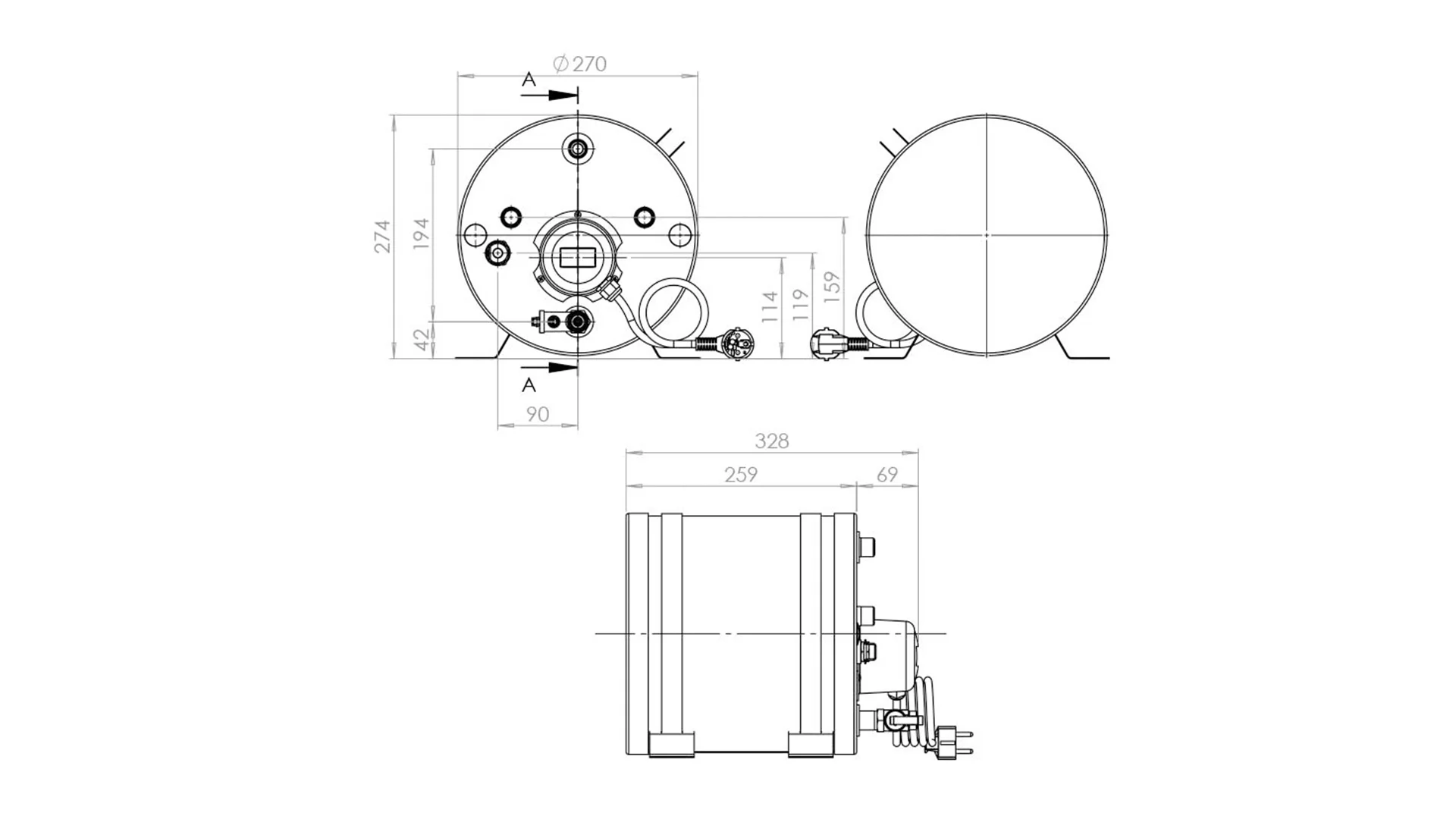

Dimensions: 328×270×274mm
Application: Trucks, Buses, Motorhomes, Boats/Yachts, Off-Highway

Compatible with the AUTOTERM Flow 5 & Flow 14D heaters.

Customized to fit seamlessly into space-conscious installations, the AUTOTERM duoBOIL 9L version offers heating and storage to 9 liters of hot water, which is usually enough for three adults to take consecutive showers.

Provides both on-land and marine vehicles with a constant hot water flow, allowing to travel, without having to worry about the comfort of hot showers or warm domestic water.

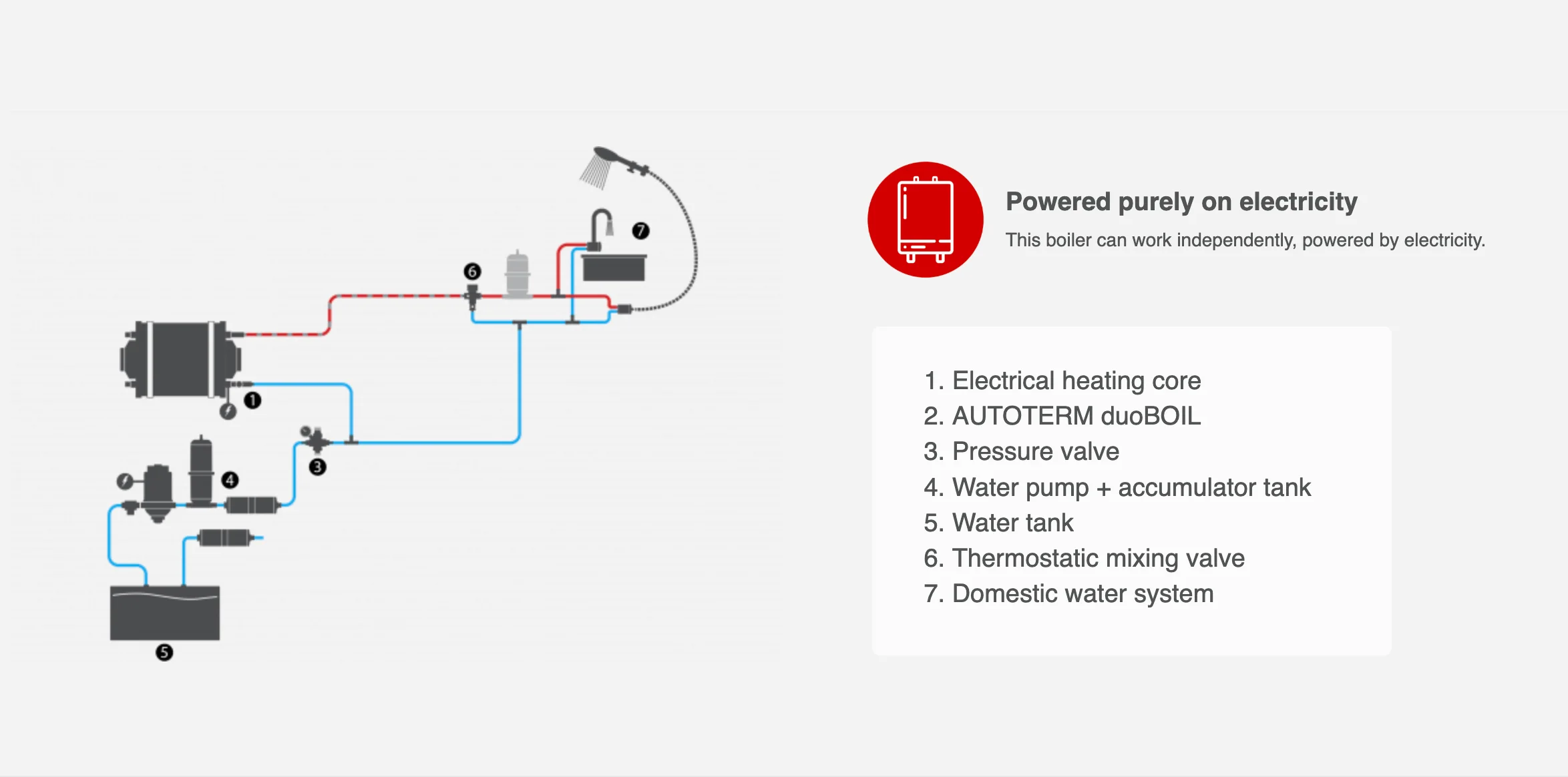

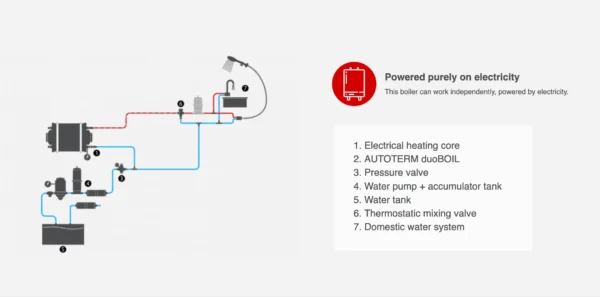

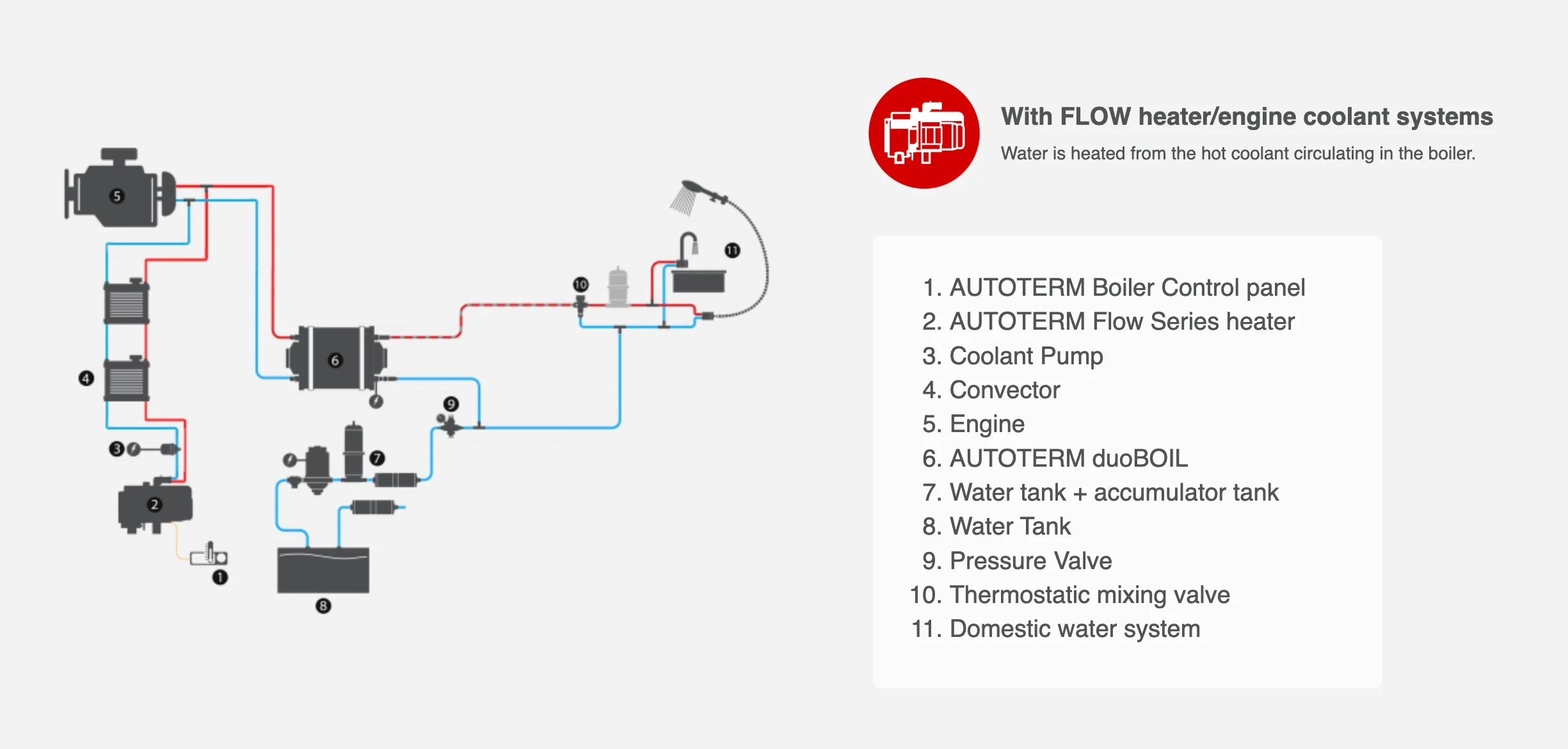

It seamlessly integrates with AUTOTERM Liquid heater installations, making it an easy upgrade for existing AUTOTERM users. It can also heat water using hot engine coolant and function independently, powered by electricity.

For brand new installations we suggest using the Domestic water kit (AT7-0018-CB) for optimal performance. If installing the boiler in an existing system, keep in mind that the system pressure is not allowed to exceed 1.5 bar. If it does, make sure to use a Pressure reducer (AT7-0006-FF0) to avoid leaks or damage to the water system components.

Unlock all the features with Comfort Boiler Control:

• Displaying water temperature in real-time
• Target water temperature is adjustable from 50-75°C
• Water heating hysteresis is adjustable 5-20°C from the target temperature
• Turning off the heating when the water temperature reaches 78°C
• Frost protection (when the water temperature drops to 2°C, the heater will automatically heat the water to +15°C and air to +7°C, protecting the boiler from freezing)

NOTE: Autoterm Comfort Control and Autoterm Comfort Boiler Control differ in hardware and software. The standard Comfort Control cannot be updated to the boiler monitoring functions.
