AUTOTERM combiBOIL 12L

Advanced Hot Water Boiler with three versatile heating options. Monitorable and controllable via Autoterm Boiler Control panel.

Capacity: 12 litres
Available power configurations: 4
Dimensions: 579×270×272mm
Application: Trucks, Buses, Motorhomes, Boats/Yachts, Off-Highway

The biggest member of the combiBOIL family, the AUTOTERM combiBOIL 12L is capable of heating up and storing 12 liters of hot water, which is usually enough for four adults to take consecutive showers.

Provides both on-land and marine vehicles with a constant hot water flow, allowing to travel, without having to worry about the comfort of hot showers or warm domestic water.

It seamlessly integrates with all AUTOTERM installations, making it an easy upgrade for current AUTOTERM users, as well as works independently, powered by electricity.

For brand new installations we suggest using the Domestic water kit (AT7-0018-CB) for optimal performance. If installing the boiler in an existing system, keep in mind that the system pressure is not allowed to exceed 1.5 bar. If it does, make sure to use a Pressure reducer (AT7-0006-FF0) to avoid leaks or damage to the water system components.

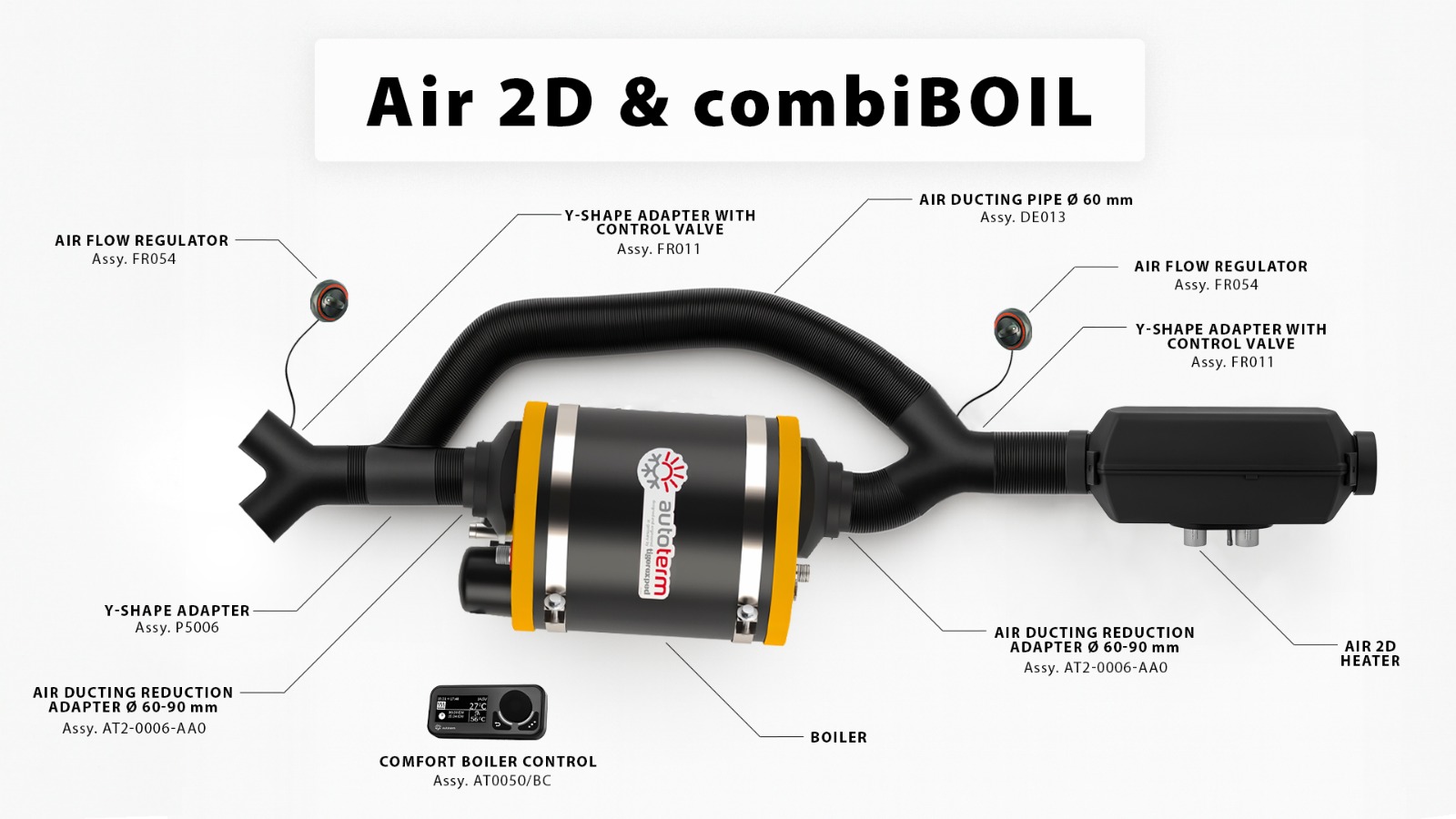

To connect the combiBOIL to an AUTOTERM Air 2D heater, use the Air ducting reduction adapter (Assy: AT2-0006-AA0).

IMPORTANT:

For both 12V (DC) and 24V (DC) versions please bear in mind: due to space constraints, there is no thermostat function or safety shutdown integrated into the heating element! Shutdown at the desired target temperature or overheating MUST be implemented externally (e.g., with an external thermostat module).

However – for 120V (AC) and 230V (AC) versions: the maximum heating temperature can be set using the rotary knob under the black protective cap. The shutdown temperature of 0 to 65°C can be set. The hysteresis is fixed (at approximately 9C). An internal additional safety switch will shut power supply off in case of malfunction – independently and no later than at 90°C.

Instruction manual: combiBOIL (EN/DE)
