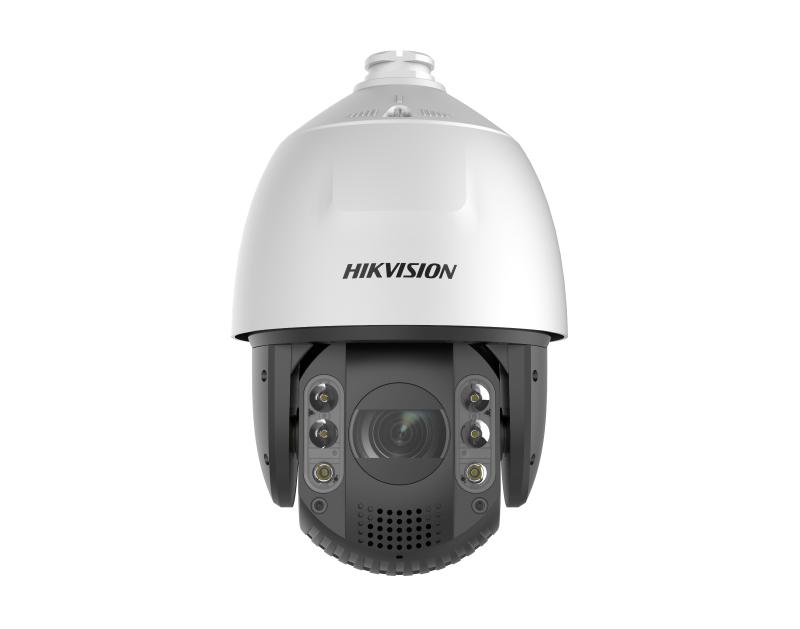

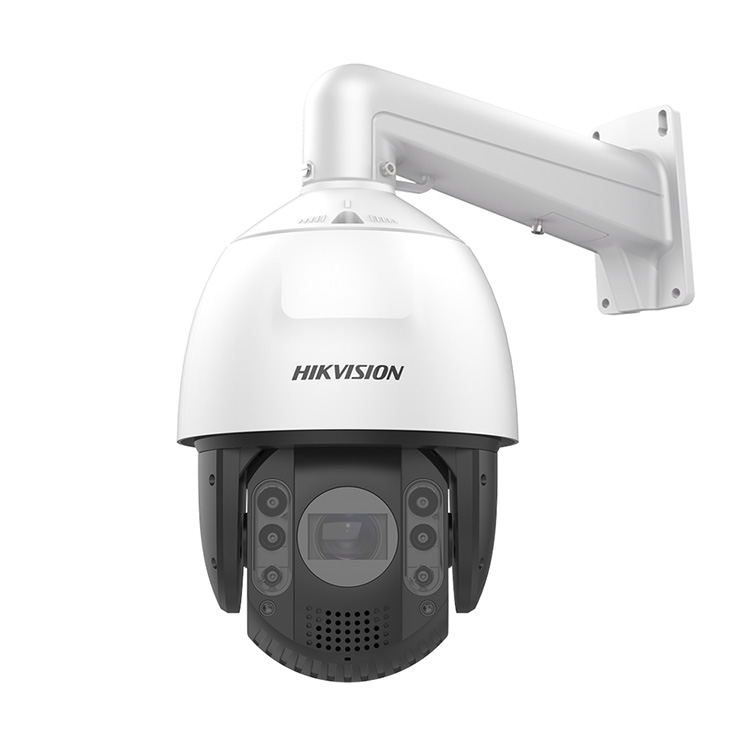

HikVision DS-2DE7A432IW-AEB

Hikvision DS-2DE7A432IW-AEB(T5) PTZ IP Dome Camera is the ideal solution for monitoring your property with high levels of detail and quality. With a maximum resolution of 4 megapixels, minimum illumination of 0.005 Lux in color, and true day/night capability, this camera delivers exceptional image quality at any time of day. It also features a 32X optical zoom and 16X digital zoom for greater magnification.

With an infrared distance of up to 200 meters and advanced features such as HLC, ROI, WDR 120 dB, BLC, area intrusion, line crossing, defog, and EIS, this camera ensures reliable and accurate surveillance in any lighting condition. It is also compatible with Hik-Connect platforms for easy integration into your security system.

In addition, this camera features high-quality physical and electrical characteristics, including protection against surges and transient voltages, outdoor use with IP66 certification, and a wide range of operating temperatures from -30°C to 65°C. It also has a built-in speaker for audible alerts and a strobe light for added deterrence.

With its 360-degree panning capability, tilt range of -15 degrees to 90 degrees, and advanced features such as preset, patrol, pattern, and false alarm reduction, this camera is an ideal choice for monitoring a wide area of your property.

Main highlights:

• 1/1.8″ progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
• 32× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 200 m IR distance
• Focuses on human and vehicle targets classification based on deep learning
• Face capture: Up to 5 faces captured at the same time

Camera

• Image Sensor – 1/1.8″ progressive scan CMOS
• Max. Resolution – 2560 × 1440
• Min. Illumination – Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
• Shutter Speed – 1/1 s to 1/30000 s
• Day & Night – IR cut filter
• Zoom – 32x optical, 16x digital
• Slow Shutter – Yes
• DORI:
  Detect (25px/m): 2046.9 m
  Observe (63px/m): 812.3 m
  Recognize (125px/m): 409.4 m
  Identify (250px/m): 204.7 m

Lens

• Focal Length – 5.9 mm to 188.8 mm
• FOV:
  Horizontal field of view: 50.8° to 2.6° (wide-tele),
  Vertical field of view: 29.4° to 1.5° (wide-tele),
  Diagonal field of view:57.4° to 3° (wide-tele)
• Focus – Auto,semi-auto,manual
• Aperture – Max. F1.5
• Zoom Speed – Approx. 4.8 s

Illuminator

• Supplement Light Type – IR
• Supplement Light Range – IR Distance: up to 200 m

PTZ

• Movement Range (Pan) – 360°
• Movement Range (Tilt) -15° to 90° (auto flip)
• Pan Speed – Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
• Tilt Speed – Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Pan – Yes
• Presets – 300
• Preset Freezing – Yes
• Patrol Scan – 8 patrols, up to 32 presets for each patrol
• Pattern Scan – 4 pattern scans
• Park Action – Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning – Yes
• PTZ Status Display – Yes
• Scheduled Task – Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Power-off Memory – Yes

Video

• Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video CompressionMain stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
• Video Bit Rate – 32 kbps to 16384 kbps
• H.264 Type – Baseline Profile/Main Profile/High Profile
• H.265 Type – Main Profile
• Scalable Video Coding (SVC) – H.264 and H.265 encoding
• Region of Interest (ROI) – 8 fixed regions for each stream

Audio

• Audio Compression – G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
• Audio Bit Rate – 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
• Audio Sampling Rate – 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering – Yes

Network

• Protocols – IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live View – Up to 20 channels
• API – Open Network Video  Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host – Up to 32 users, 3 user levels: administrator, operator, and user
• Security – Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Network Storage – NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client – iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser – IE11, Chrome 57+, Firefox 52+, Safari 11+


• Image Settings – Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night Switch – Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR) – 120 dB
• SNR > 52 dB
• Defog – Digital defog
• Image Stabilization – EIS
• Image Enhancement – BLC, HLC, 3D DNR
• Privacy Mask – 24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional Focus – Yes
• Regional Exposure – Yes

Interface

• Ethernet Interface – 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage – Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-in Speaker – 1 built-in speaker with effective distance reaching max. 30 meters
• Audio – 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Alarm – 2 inputs, 1 output
• Reset – Yes

Event

• Basic Event – Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event – Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Linkage – Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart Tracking – Manual tracking, auto-tracking

Deep Learning Function

• Face Capture:
  Detects up to 5 faces simultaneously.
  Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
• Perimeter Protection:
  Line crossing, intrusion, region entrance, region exiting
  Support alarm triggering by specified target types (human and vehicle)

Genuine EU version (no problems with firmware updates and other important functionality)

Package includes: power adapter, mount.
